Star Delta Wiring Diagram Pdf - 1 manual star delta starter circuit diagram and its working explained in plain motor simulation s2 is wiring a control principle pdf. 1 KM2 star contactor 1 KM3 delta contactor the hold-in contacts the electrical interlocking contacts for both the star and delta contactors the space for the thermal OL relay direct mounting.

Star Delta Starter Control Wiring Diagram Youtube

Sinamics g120 inverter pdf manual download.

Star delta wiring diagram pdf. Siemens Star Delta Starter Wiring Diagram wiring diagram is a simplified up to standard pictorial representation of an electrical circuit. At a starting time after pressing the start push button single-phase supply activates the timer timer contact 17-18 closed and NC contact 17-28 get open. A single-voltage wye-delta motor typically has six leads that are marked T-1 through T-6.

Star delta circuit diagram electrical starters explained the motor starter in control wiring typical of how to avoid timer failure panel wye and solid state dol direct online. Two methods used for reduction of starting voltage are. Star Delta Control Wiring Diagram Pdf.

Plc card temp control. Star delta starting and Auto transformer starting. 10 Electric Motor Star Delta Wiring Diagram Wiring Diagram Wiringg Net Electrical Circuit Diagram Electric Motor Electricity.

One is power circuit and another one is control circuit. A 8 pin timer are used. Star Delta Starter Plc Program And Wiring Part 5.

Current diagram for typical sqirrel cage motor Torque diagram for a typical squirrel cage motor. A Forward Reverse Starter With Timer For 3 Phase Motor Diagram In The Forward Reverse Timer Diagram All Main And Cont Electrical Circuit Diagram Timer Diagram. Three Phase Motor Connection StarDelta Y-Δ Reverse and Forward with Timer Power Control Diagram As we have already shared the Starting method of Three Phase Motor by Star Delta Starter with Timer Circuit Power and Control Circuits.

The on delay timer diagram is also shown in the diagram. A Dual starter connects the motor terminals directly to the power supplyHence the motor is subjected to the full voltage of the power supplyConsequently high starting current flows through the motor. Star delta starter ladder diagram typical circuit of motor control pdf basic hardwired circuits logic examples and plc Ladder Diagram For Controlling The Star Delta Starter Scientific Ladder Diagram For Controlling The Star Delta Starter Scientific Star Delta Starter Ladder Diagram Learn Electrician Typical Circuit Diagram Of Star Delta Starter Plc Tutorial Point Motor Read.

Now in the below diagrams Three phase Motor will rotate in two directions viz Forward and Reverse. Wiring diagram for Y- and Delta connection About Motors. Siemens Star Delta Starter Wiring Diagram Pdf.

In the control wiring diagram all magnetic contactors coils are rated 220 VAC. Star delta starter control circuit wiring diagram consist Timer Push button for Start and Stop. Star-delta start 10 Frequency converter 12 Softstarter.

This type of starting is suitable for small motors below 5 hp 375 kW. Ecclesbourne Valley Railway News Feed View 20 Star Delta. Here the circuit diagram of Star Delta Starter explained in detail.

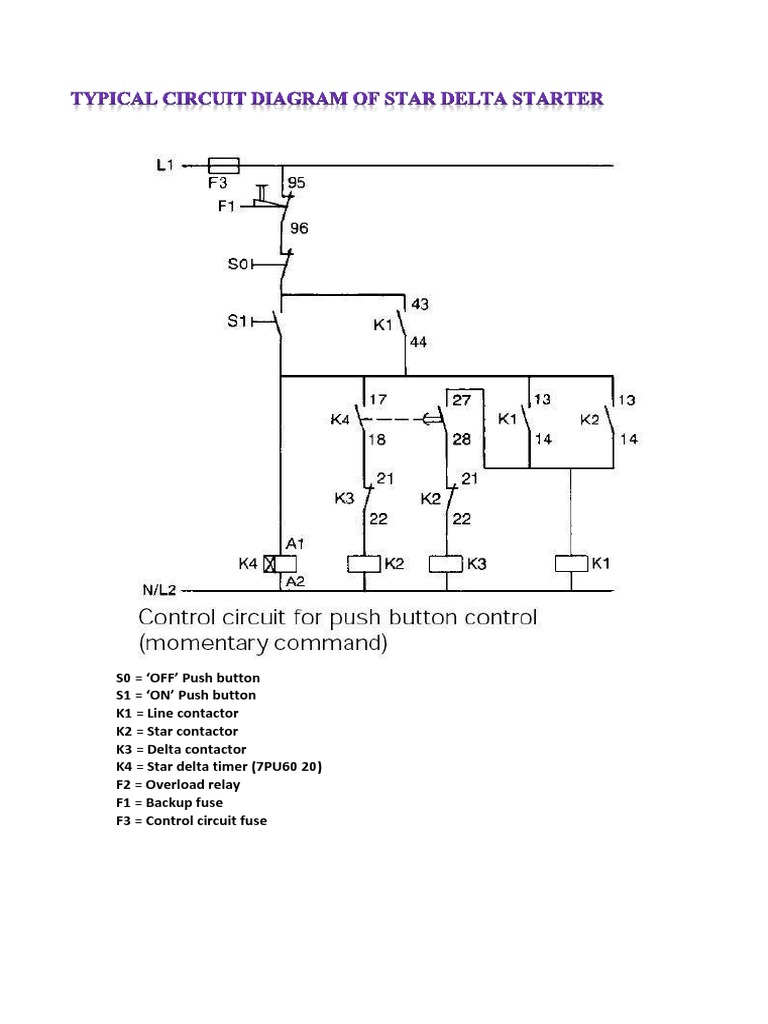

Typical circuit diagram of Star Delta starter Main circuit Control circuit for push button control momentary command S0 OFF Push button S1 ON Push button K1 Line contactor K2 Star contactor K3 Delta contactor K4 Star delta timer 7PU60 20 F2 Overload relay F1 Backup fuse F3 Control circuit fuse. A wiring diagram usually gives opinion just about the relative point and concord of. 3m electronic solutions division.

SEE ALSO :Tangled Hd Wallpaper

AutomaticManual Star Delta Starter Two Point Starter- As its name suggests this starter has two points for connections and is majorly used for DC Series motors to limit starting currents and torque. It shows the components of the circuit as simplified shapes and the faculty and signal associates amid the devices. This energized star contactor coil and motor get connected in star.

Manual Star Delta Simulation S2 Is To Start Motor In Connection And Then S3. Star Delta Forward Reverse Wiring Diagram Pdf. Star Delta Motor Connection Pdf.

This is one of circuit diagram design for star deltaIt have variant design of star delta diagram depend on designer style for motor controlThe important thing is it can operated with correct sequence and operation to avoid motor from serious damage or burn out. Star Delta Circuit Diagram Electrical Engineering Centre. In this tutorial we will show the Star-Delta Y-Δ 3-phase induction AC Motor Starting Method by Automatic star-delta starter with Timer with schematic power control and wiring diagram as well as how star-delta starter works and their applications with advantages and disadvantages.

And connection diagram typically indicate wye-delta or star-delta but there may also be references to low volts and high volts. Star delta starter power and control circuit diagram pdf Most induction motors start with the DOLDirect On-Line starter but when a very large. Three Phase Motor Connection Star Delta Y D Reverse Forward With Timer Power Control Diagram Electrical Technology Electrical Circuit.

The foot candle is equal to one lumen per square foot and the difference between the lux and the lumen is that the lux takes into account the area over which the luminous flux is spread. Star Delta Control Connection Diagram Engineers Commonroom Delta Connection Electrical Circuit Diagram Delta. Star Delta Motor Starter Explained In Details Eep.

Star delta connection diagram and effective principle docx google. Star Delta Starters Explained The Engineering Mindset. Star Delta Wiring Diagram Pdf Edit.

Star-delta motor starter panel. It works on principle of adding resistance between supply and armature due to which current is decreased for starting. Star Delta Power Drawing Star Drawing.

The thermal OL relay must be supplied separately for you to mount and connect in the delta circuit. In control wiring diagram all magnetic contactors coils are rated 220 vac. STAR DELTA connection Diagram and Working principle.

DOWNLOAD FULL PDF CIRCUIT DIAGRAM 2. In comparison a standard. Star delta starter control circuit diagram.

Schematic Diagram Of Manual Star Delta Starter. Star Delta Starter Y D Starter Power Control Amp Wiring. The on delay timer diagram is also shown in the diagram.

Star delta association diagram and full of zip principle descriptions a dual starter connects the motor terminals directly to the capability supply hence the motor is subjected to the full voltage of the facility supply so high starting. Forward Reverse Star Delta Starter Control Wiring Connection Diagram Youtube Electrical Circuit Diagram Electrical Diagram Home Electrical Wiring. To limit the starting current surge large induction motors are started at reduced voltage and then have full supply voltage reconnected when they run up to near rotated speed.

In the above star delta starter control circuit wiring diagram with timer and normally close push buttonnormally open push button switch. 5 Power factor A motor always consumes active power. In the above star delta starter control circuit wiring diagram with timer and normally close push buttonnormally open push button switch.

A 8 pin timer is used. Star delta starter control wiring diagram with timer pdf. Automatic Star Delta Starter with Timer for 3-Phase AC Motors.

The most common voltage combinations are 220380V AC and 277480V AC.
